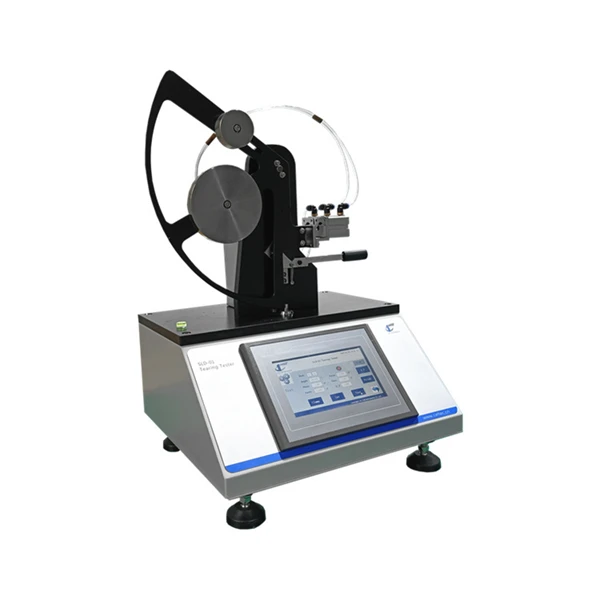

Tearing Strength Tester is the tensile force required to rupture a pre-slit sample under controlled test conditions. Cell Instruments Tearing Strength Tester is designed as per standards ASTM D1424-09(2013), ASTM D689, ASTM D1922, TAPPI T414.
The tester comes equipped with a range of advanced features that make it easy to operate, while also delivering reliable and precise test results.
One of the standout features is its pneumatic specimen clamping system, which ensures a secure grip on the test sample during testing. The automatic release of the pendulum also makes the testing process more efficient, allowing for quicker and more accurate testing.
The rugged structure is designed to withstand heavy use and is made from corrosion-resistant materials, ensuring durability and longevity. The one-touch operation makes it easy to use and provides highly reliable lab testing results to the users.
This also comes equipped with inbuilt calibration weights, which make it easy to maintain the accuracy of the instrument over time. Test results can be displayed on the configurable display, which can also be used to generate reports and analyze data.
Specification
| Pendulum Capacity(gf) | 200,400,800,1600,3200,6400 |
| Gas Source | 0.6 MPa |
| Tearing Arm | 104±1mm |
| Tearing Initial Angle | 27.5 ±0.5° |
| Power | AC110~220V 50/60Hz |
Features
- Pneumatic specimen clamping and automatic release of pendulum
- High Quality rugged structure with corrosion resistant main body
- One touch hassle free operation
- Highly accurate test results under multiple pendulum weights
- Strong gripping fixture for holding test samples
- configurable display for result and reporting
- Inbuilt calibration weights
- Test Results include tear strength, tear per ply, average tear strength
